BT236X-800 - 4Q Triac

Name: BT236X-800
SKU: BT236X-800-1295412

NXP

The BT236X-800 by NXP is a 4Q Triac. Below is the official datasheet preview.

📥 Download Datasheet

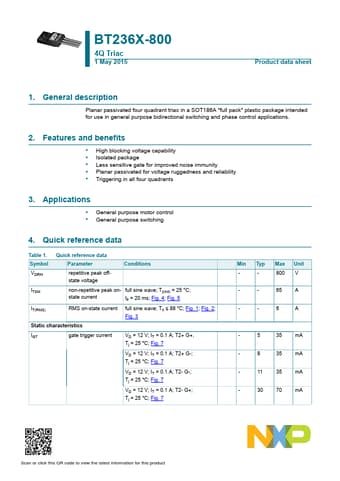

BT236X-800 4Q Triac by NXP - Datasheet Preview — Official preview page of the **BT236X-800** 4Q Triac datasheet (NXP).

Datasheet Details

Part number	BT236X-800
Manufacturer	NXP
File Size	194.05 KB
Description	4Q Triac
Datasheet	BT236X-800-NXP.pdf
Additional preview pages of the BT236X-800 datasheet.

BT236X-800 Product details

Description

Planar passivated four quadrant triac in a SOT186A "full pack" plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

High blocking voltage capability.
Isolated package.
Less sensitive gate for improved noise immunity.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants 3.
