BT232W-800D - 4Q Triac

Name: BT232W-800D
SKU: BT232W-800D-1568199

WeEn

📥 Download Datasheet

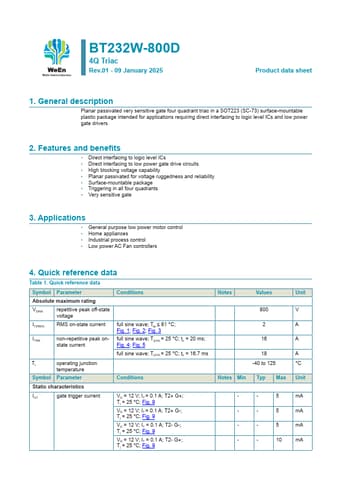

BT232W-800D Datasheet Preview — Preview of BT232W-800D PDF

Datasheet Details

Part number	BT232W-800D
Manufacturer	WeEn
File Size	720.24 KB
Description	4Q Triac
Datasheet	BT232W-800D-WeEn.pdf

BT232W-800D Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT223 (SC-73) surface-mountable plastic package intended for applications requiring direct interfacing to logic level ICs and low power gate drivers 2.

Features

Direct interfacing to logic level ICs.
Direct interfacing to low power gate drive circuits.
High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in all four quadrants.
Very sensitive gate 3.
