BAT754L - Schottky barrier triple diode

NXP

The BAT754L by NXP is a Schottky barrier triple diode. Below is the official datasheet preview.

📥 Download Datasheet

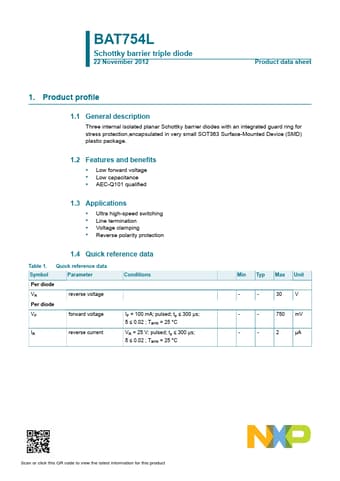

BAT754L Schottky barrier triple diode by NXP - Datasheet Preview — Official preview page of the **BAT754L** Schottky barrier triple diode datasheet (NXP).

Datasheet Details

Part number	BAT754L
Manufacturer	NXP
File Size	142.00 KB
Description	Schottky barrier triple diode
Datasheet	BAT754L-NXP.pdf
Additional preview pages of the BAT754L datasheet.

BAT754L Product details

Description

Three internal isolated planar Schottky barrier diodes with an integrated guard ring for stress protection,encapsulated in very small SOT363 Surface-Mounted Device (SMD) plastic package.

Features

Low forward voltage.
Low capacitance.
AEC-Q101 qualified 1.3.
