BAT721S - Schottky barrier diodes

Nexperia

Download the BAT721S datasheet PDF. This datasheet also covers the BAT721 variant, as both devices belong to the same schottky barrier diodes family and are provided as variant models within a single manufacturer datasheet.

Description

Planar Schottky barrier diodes with an integrated guard ring for stress protection.

Encapsulated in small Surface-Mounted Device (SMD) plastic packages.

Table 1.

Features

I Low forward voltage I Small SMD plastic packages I Low capacitance 1.3.

📥 Download Datasheet

BAT721S schottky barrier diodes by Nexperia - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BAT721-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BAT721S
Manufacturer	Nexperia
File Size	616.95 KB
Description	Schottky barrier diodes
Datasheet	BAT721S Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAT721S	Schottky barrier double diodes	NXP
BAT721S	SCHOTTKY BARRIER (DOUBLE) DIODES	Pan Jit International
BAT721	Schottky barrier double diodes	NXP
BAT721A	Schottky barrier double diodes	NXP
BAT721C	Schottky barrier double diodes	NXP

Other Datasheets by Nexperia

Part Number	Description
BAT721	Schottky barrier diodes
BAT721A	200mA Schottky barrier dual diode
BAT721C	Schottky barrier diodes
BAT74S-Q	Schottky barrier dual diode
BAT754L	Schottky barrier triple diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

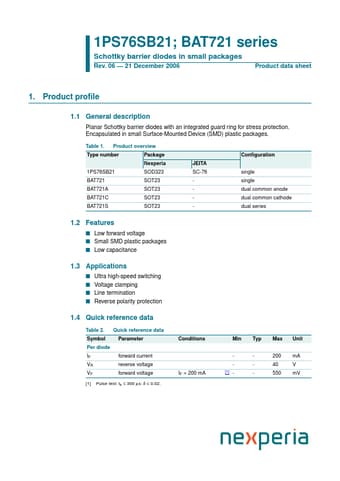

1PS76SB21; BAT721 series Schottky barrier diodes in small packages Rev. 06 — 21 December 2006 Product data sheet 1. Product proﬁle 1.1 General description Planar Schottky barrier diodes with an integrated guard ring for stress protection. Encapsulated in small Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type number Package Nexperia 1PS76SB21 SOD323 BAT721 SOT23 BAT721A SOT23 BAT721C SOT23 BAT721S SOT23 JEITA SC-76 - Conﬁguration single single dual common anode dual common cathode dual series 1.2 Features I Low forward voltage I Small SMD plastic packages I Low capacitance 1.3 Applications I Ultra high-speed switching I Voltage clamping I Line termination I Reverse polarity protection 1.4 Quick reference data Table 2.
