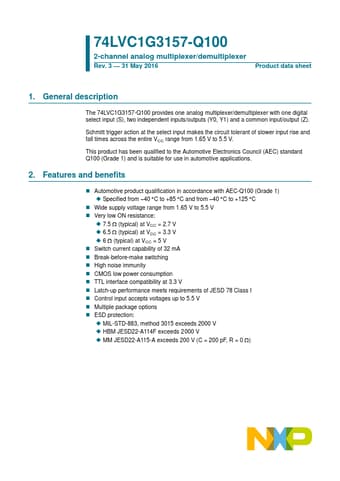

74LVC1G3157-Q100 Datasheet Preview — Preview of 74LVC1G3157-Q100 PDF

Datasheet Details

Part number	74LVC1G3157-Q100
Manufacturer	NXP
File Size	189.46 KB
Description	2-channel analog multiplexer/demultiplexer
Datasheet	74LVC1G3157-Q100-NXP.pdf

74LVC1G3157-Q100 Product details

Description

The 74LVC1G3157-Q100 provides one analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1) and a common input/output (Z).

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from 40 C to +85 C and from 40 C to +125 C.
Wide supply voltage range from 1.65 V to 5.5 V.
Very low ON resistance:.
7.5  (typical) at VCC = 2.7 V.
6.5  (typical) at VCC = 3.3 V.
6  (typical) at VCC = 5 V.
Switch current capability o.
