74LVC1G332-Q100 - 3-input OR gate

Description

The 74LVC1G332-Q100 is a single 3-input OR gate.

Inputs can be driven from either 3.3 V or 5 V devices.

This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and -40 °C to +125 °C.
  • Wide supply voltage range from 1.65 V to 5.5 V.
  • High noise immunity.
  • Overvoltage tolerant inputs to 5.5 V.
  • ±24 mA output drive (VCC = 3.0 V).
  • CMOS low power dissipation.
  • Direct interface with TTL levels.
  • IOFF circuitry provides partial Power-down mode operation.
  • Latch-up performanc.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74LVC1G332 Single 3-Input OR Gate NXP
74LVC1G3157 SINGLE-POLE DOUBLE-THROW ANALOG SWITCH Diodes
74LVC1G3157 2-channel analog multiplexer/demultiplexer NXP Semiconductors
74LVC1G3157-Q100 2-channel analog multiplexer/demultiplexer NXP
74LVC1G32 SINGLE 2 INPUT POSITIVE OR GATE Diodes

Other Datasheets by Nexperia

Part Number Description
74LVC1G332 Single 3-input OR gate
74LVC1G3157 2-channel analog multiplexer/demultiplexer
74LVC1G3157-Q100 2-channel analog multiplexer/demultiplexer
74LVC1G32 Single 2-input OR gate
74LVC1G32-Q100 Single 2-input OR gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

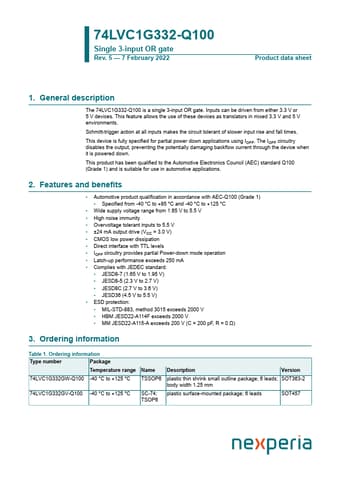

74LVC1G332-Q100 Single 3-input OR gate Rev. 5 — 7 February 2022 Product data sheet 1. General description The 74LVC1G332-Q100 is a single 3-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2.
