74AHCT139 Dual 2-to-4 line decoder/demultiplexer

74AHCT139 Description

INTEGRATED CIRCUITS DATA SHEET 74AHC139; 74AHCT139 Dual 2-to-4 line decoder/demultiplexer Product speciļ¬cation File under Integrated Circuits, IC06 .
74AHC139; 74AHCT139 The 74AHC/AHCT139 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL).

74AHCT139 Features

* ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V CDM EIA/JESD22-C101 exceeds 1000 V
* Balanced propagation delays
* All inputs have Schmitt trigger actions
* Inputs accept voltages higher than VCC
* For AHC only: operat

📥 Download Datasheet

Preview of 74AHCT139 PDF

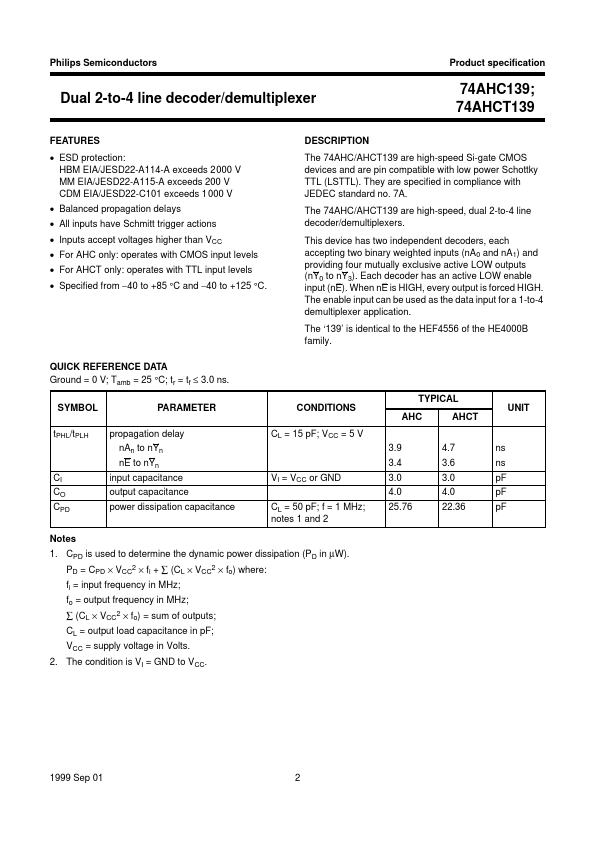

datasheet Preview Page 2 datasheet Preview Page 3
