PBHV9050T - 150mA PNP high-voltage low VCEsat (BISS) transistor

NXP Semiconductors

📥 Download Datasheet

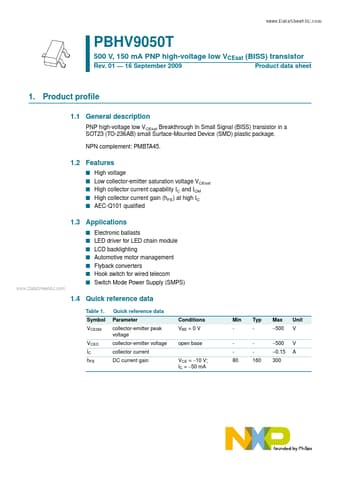

PBHV9050T Datasheet Preview — Preview of PBHV9050T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PBHV9050T
Manufacturer	NXP Semiconductors
File Size	129.95 KB
Description	150mA PNP high-voltage low VCEsat (BISS) transistor
Datasheet	PBHV9050T_NXPSemiconductors.pdf

PBHV9050T Product details

Description

PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package.

Features

I I I I I High voltage Low collector-emitter saturation voltage VCEsat High collector current capability IC and ICM High collector current gain (hFE) at high IC AEC-Q101 qualiﬁed 1.3.
