PBHV9115TLH - PNP Transistor

Description

PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

2.

Features

  • High voltage.
  • Low collector-emitter saturation voltage VCEsat.
  • High collector current capability IC and ICM.
  • Small SMD plastic package.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PBHV9115T 1 A PNP high-voltage low VCEsat (BISS) transistor NXP Semiconductors
PBHV9115X 1 A PNP high-voltage low VCEsat (BISS) transistor NXP
PBHV9040T 0.25A PNP high-voltage low VCEsat (BISS) transistor NXP Semiconductors
PBHV9050T 150mA PNP high-voltage low VCEsat (BISS) transistor NXP Semiconductors
PBHV9215Z 2A PNP High-voltage Low VCEsat (BISS) Transistor NXP Semiconductors

Other Datasheets by Nexperia

Part Number Description
PBHV9115Z PNP Transistor
PBHV9040T PNP transistor
PBHV9040T-Q 0.25A PNP high-voltage low VCEsat transistor
PBHV9040X PNP Transistor
PBHV9040Z PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

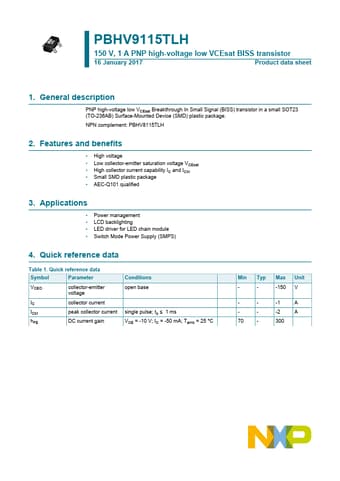

PBHV9115TLH 150 V, 1 A PNP high-voltage low VCEsat BISS transistor 16 January 2017 Product data sheet 1. General description PNP high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. NPN complement: PBHV8115TLH 2. Features and benefits • High voltage • Low collector-emitter saturation voltage VCEsat • High collector current capability IC and ICM • Small SMD plastic package • AEC-Q101 qualified 3. Applications • Power management • LCD backlighting • LED driver for LED chain module • Switch Mode Power Supply (SMPS) 4. Quick reference data Table 1.
