NX3DV3899 - Dual double-pole double-throw analog switch

Description

The NX3DV3899 is a dual double-pole double-throw analog data-switch suitable for use as an analog or digital multiplexer/demultiplexer.

It consists of four switches, each with two independent input/outputs (nY0 and nY1) and a common input/output (nZ).

Features

  • Wide supply voltage range from 1.4 V to 4.3 V.
  • Very low ON resistance (peak):.
  • 7.2 Ω (typical) at VCC = 1.4 V.
  • 5.4 Ω (typical) at VCC = 1.65 V.
  • 2.9 Ω (typical) at VCC = 2.5 V.
  • 2.4 Ω (typical) at VCC = 3.0 V.
  • 2.3 Ω (typical) at VCC = 3.6 V.
  • 2.2 Ω (typical) at VCC = 4.3 V.
  • Break-before-make switching.
  • High noise immunity.
  • ESD protection:.
  • HBM JESD22-A114F Class 2A exceeds 2000 V (all pins).

📥 Download Datasheet

Datasheet Details

Part number NX3DV3899
Manufacturer NXP Semiconductors
File Size 381.17 KB
Description Dual double-pole double-throw analog switch
Datasheet download datasheet NX3DV3899 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NX3DV42 Dual high-speed USB 2.0 double-pole double-throw analog switch NXP
NX3DV642 3-lane high-speed MIPI compatible switch NXP
NX3008CBKS N/P-channel MOSFET nexperia
NX3008CBKV N/P-channel MOSFET nexperia
NX3008NBK N-channel MOSFET nexperia

Other Datasheets by NXP Semiconductors

Part Number Description
NX3DV221 High-speed USB2.0 switch
NX3DV2567 Low-ohmic four-pole double-throw analog switch
NX3008CBKS MOSFET
NX3008CBKV MOSFET
NX3008NBKMB MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

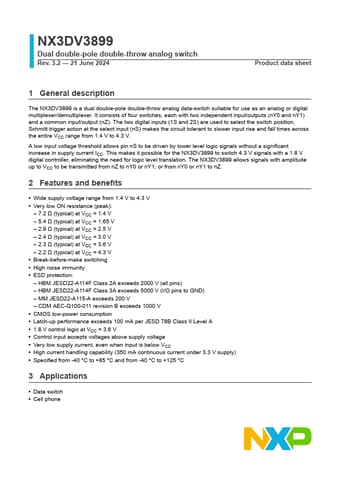

NX3DV3899 Dual double-pole double-throw analog switch Rev. 3.2 — 21 June 2024 Product data sheet 1 General description The NX3DV3899 is a dual double-pole double-throw analog data-switch suitable for use as an analog or digital multiplexer/demultiplexer. It consists of four switches, each with two independent input/outputs (nY0 and nY1) and a common input/output (nZ). The two digital inputs (1S and 2S) are used to select the switch position. Schmitt trigger action at the select input (nS) makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 1.4 V to 4.3 V. A low input voltage threshold allows pin nS to be driven by lower level logic signals without a significant increase in supply current ICC.
