IP4254, IP4251 - (IP4251 - IP4254) passive filter network

Name: IP4254
SKU: IP4254-677168

NXP Semiconductors

📥 Download Datasheet

IP4254 Datasheet Preview — This datasheet PDF includes multiple part numbers: IP4254, IP4251. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IP4254, IP4251
Manufacturer	NXP Semiconductors
File Size	126.23 KB
Description	(IP4251 - IP4254) passive filter network
Datasheet	IP4251_NXPSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: IP4254, IP4251. Please refer to the document for exact specifications by model.

IP4254 Product details

Description

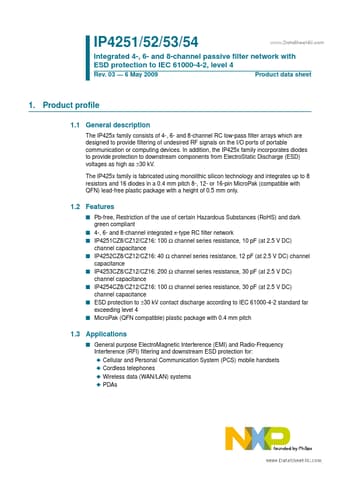

The IP425x family consists of 4-, 6- and 8-channel RC low-pass ﬁlter arrays which are designed to provide ﬁltering of undesired RF signals on the I/O ports of portable communication or computing devices.

Features

I Pb-free, Restriction of the use of certain Hazardous Substances (RoHS) and dark green compliant I 4-, 6- and 8-channel integrated π-type RC ﬁlter network I IP4251CZ8/CZ12/CZ16: 100 Ω channel series resistance, 10 pF (at 2.5 V DC) channel capacitance I IP4252CZ8/CZ12/CZ16: 40 Ω channel series resistance, 12 pF (at 2.5 V DC) channel capacitance I IP4253CZ8/CZ12/CZ16: 200 Ω channel series resistance, 30 pF (at 2.5 V DC) channel capacitance I IP4254CZ8/CZ12/CZ16: 100 Ω channel series resistance, 3.
