CGY1047 - 27 dB gain GaAs push-pull amplifier

Description

Hybrid amplifier module in a SOT115J package, operating at a supply voltage of 24 V Direct Current (DC), employing Heterojunction Field Effect Transistor (HFET) GaAs dies.

Features

  • I I I I I I I I Excellent linearity, stability and reliability Extremely low noise Excellent return loss properties Rugged construction Unconditionally stable Thermally optimized design Superior levels of ESD protection Compliant to Directive 2002/95/EC, regarding Restriction of the use of certain Hazardous Substances (RoHS) I Integrated ring wave surge protection 1.3.

📥 Download Datasheet

Datasheet Details

Part number CGY1047
Manufacturer NXP Semiconductors
File Size 76.12 KB
Description 27 dB gain GaAs push-pull amplifier
Datasheet download datasheet CGY1047 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CGY120 GaAs MMIC Siemens Semiconductor Group
CGY121 GaAs MMIC Siemens Semiconductor Group
CGY121 GaAs MMIC Siemens Semiconductor Group
CGY121A GaAs MMIC Siemens Semiconductor Group
CGY121B GaAs MMIC Siemens Semiconductor Group

Other Datasheets by NXP Semiconductors

Part Number Description
CGY1041 1 GHz - 21 dB gain GaAs push-pull amplifier
CGY1043 1 GHz - 23 dB gain GaAs push-pull amplifier
CGY1032 1 GHz - 32 dB gain GaAs push-pull amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

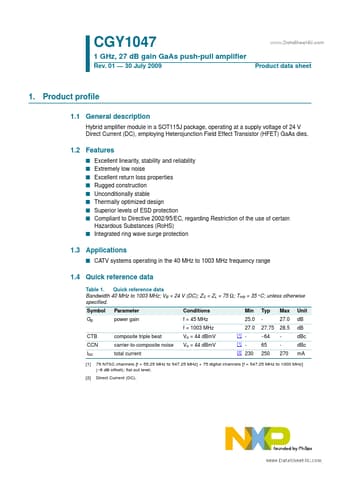

CGY1047 1 GHz, 27 dB gain GaAs push-pull amplifier Rev. 01 — 30 July 2009 www.DataSheet4U.com Product data sheet 1. Product profile 1.1 General description Hybrid amplifier module in a SOT115J package, operating at a supply voltage of 24 V Direct Current (DC), employing Heterojunction Field Effect Transistor (HFET) GaAs dies. 1.2 Features I I I I I I I I Excellent linearity, stability and reliability Extremely low noise Excellent return loss properties Rugged construction Unconditionally stable Thermally optimized design Superior levels of ESD protection Compliant to Directive 2002/95/EC, regarding Restriction of the use of certain Hazardous Substances (RoHS) I Integrated ring wave surge protection 1.3 Applications I CATV systems operating in the 40 MHz to 1003 MHz frequency range 1.
