NTE247 - Silicon Complementary Transistors

Product Overview

NTE

NTE247 Silicon Complementary Transistors by NTE - Datasheet Preview — Datasheet preview – NTE247

Datasheet Details

Part number	NTE247
Manufacturer	NTE
File Size	26.38 KB
Description	Silicon Complementary Transistors
Datasheet	NTE247 Datasheet

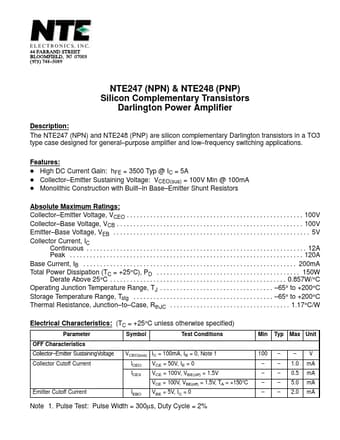

Additional preview pages of the NTE247 datasheet.

Product details

Description

The NTE247 (NPN) and NTE248 (PNP) are silicon complementary Darlington transistors in a TO3 type case designed for general purpose amplifier and low frequency switching applications.

Features

D High DC Current Gain: hFE = 3500 Typ @ IC = 5A D Collector.
Emitter Sustaining Voltage: VCEO(sus) = 100V Min @ 100mA D Monolithic Construction with Built.
In Base.
Emitter Shunt Resistors Absolute Maximum Ratings: Collector.
Emitter Voltage, VCEO.
. . . 100V Collector.
Base Voltage, VCB.
