NTE1919 - Integrated Circuit Negative 3 Terminal Voltage Regulator

Product Overview

NTE

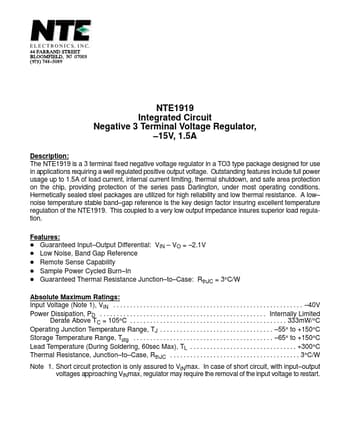

NTE1919 Integrated Circuit Negative 3 Terminal Voltage Regulator by NTE - Datasheet Preview — Datasheet preview – NTE1919

Datasheet Details

Part number	NTE1919
Manufacturer	NTE
File Size	24.35 KB
Description	Integrated Circuit Negative 3 Terminal Voltage Regulator
Datasheet	NTE1919 Datasheet
Additional preview pages of the NTE1919 datasheet.

Product details

Description

The NTE1919 is a 3 terminal fixed negative voltage regulator in a TO3 type package designed for use in applications requiring a well regulated positive output voltage.

Features

include full power usage up to 1.5A of load current, internal current limiting, thermal shutdown, and safe area protection on the chip, providing protection of the series pass Darlington, under most operating conditions. Hermetically sealed steel packages are utilized for high reliability and low thermal resistance. A low.
noise temperature stable band.
gap reference is the key design factor insuring excellent temperature regulation of the NTE1919. This coupled to a very low outpu.
