NTE1918 - 3 Terminal Positive Voltage Regulator

Product Overview

NTE

📥 Download Datasheet

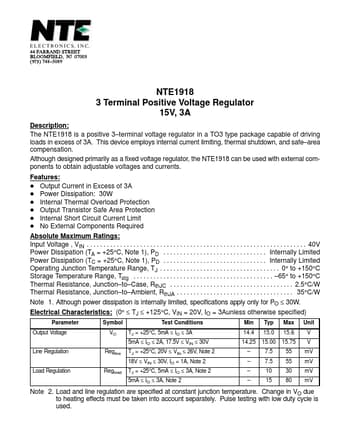

NTE1918 3 Terminal Positive Voltage Regulator by NTE - Datasheet Preview — Datasheet preview – NTE1918

Datasheet Details

Part number	NTE1918
Manufacturer	NTE
File Size	25.56 KB
Description	3 Terminal Positive Voltage Regulator
Datasheet	NTE1918 Datasheet
Additional preview pages of the NTE1918 datasheet.

Product details

Description

The NTE1918 is a positive 3 terminal voltage regulator in a TO3 type package capable of driving loads in excess of 3A. area compensation.

Features

D Output Current in Excess of 3A D Power Dissipation: 30W D Internal Thermal Overload Protection D Output Transistor Safe Area Protection D Internal Short Circuit Current Limit D No External Components Required Absolute Maximum Ratings: Input Voltage , VIN.
. 40V Power Dissipation (TA = +25°C, Note 1), PD.
. Internally Limited P.
