NTE1731 - Integrated Circuit CMOS 10 Number Pulse Dialer

Product Overview

NTE

Part number	NTE1731
Manufacturer	NTE
File Size	29.40 KB
Description	Integrated Circuit CMOS 10 Number Pulse Dialer
Datasheet	NTE1731 Datasheet

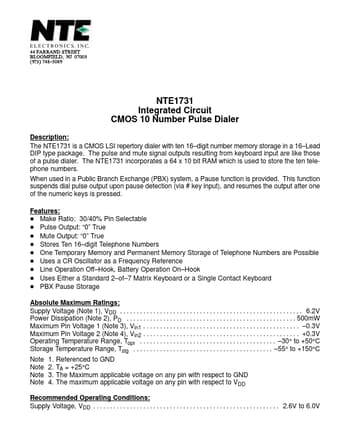

Additional preview pages of the NTE1731 datasheet.

The NTE1731 is a CMOS LSI repertory dialer with ten 16 digit number memory storage in a 16 Lead DIP type package.

D Make Ratio: 30/40% Pin Selectable D Pulse Output: “0” True D Mute Output: “0” True D Stores Ten 16.
digit Telephone Numbers D One Temporary Memory and Permanent Memory Storage of Telephone Numbers are Possible D Uses a CR Oscillator as a Frequency Reference D Line Operation Off.
Hook, Battery Operation On.
Hook D Uses Either a Standard 2.
of.
7 Matrix Keyboard or a Single Contact Keyboard D PBX Pause Storage Absolute Maximum Ratings: Supply Voltage (Note 1),.
