NTE1730 - Integrated Circuit Dual Preamp

Product Overview

NTE

Part number	NTE1730
Manufacturer	NTE
File Size	18.92 KB
Description	Integrated Circuit Dual Preamp
Datasheet	NTE1730 Datasheet

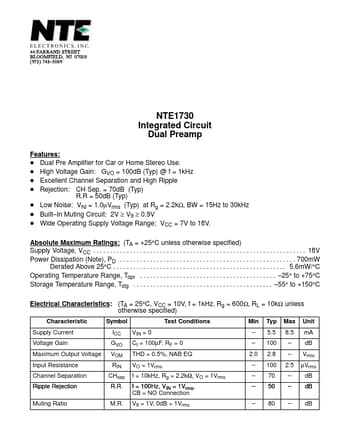

Additional preview pages of the NTE1730 datasheet.

D Dual Pre Amplifier for Car or Home Stereo Use. D High Voltage Gain: GVO = 100dB (Typ) @ f = 1kHz D Excellent Channel Separation and High Ripple D Rejection: CH Sep. = 70dB (Typ) R. R = 50dB (Typ) D Low Noise: VNI = 1.0µVrms (Typ) at Rg = 2.2kΩ, BW = 15Hz to 30kHz D Built.
In Muting Circuit: 2V ≥ V9 ≥ 0.9V D Wide Operating Supply Voltage Range; VCC = 7V to 18V. Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
