NTE1683 - Integrated Circuit Horizontal/Vertical Processing

Product Overview

NTE

Part number	NTE1683
Manufacturer	NTE
File Size	24.84 KB
Description	Integrated Circuit Horizontal/Vertical Processing
Datasheet	NTE1683 Datasheet

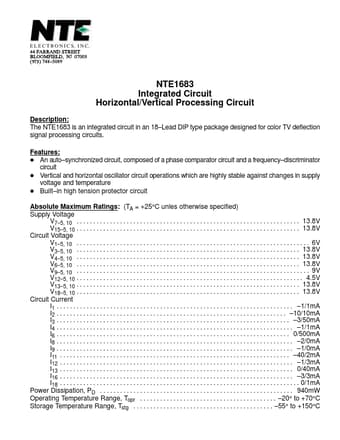

Additional preview pages of the NTE1683 datasheet.

The NTE1683 is an integrated circuit in an 18 Lead DIP type package designed for color TV deflection signal processing circuits.

D An auto.
synchronized circuit, composed of a phase comparator circuit and a frequency.
discriminator circuit D Vertical and horizontal oscillator circuit operations which are highly stable against changes in supply voltage and temperature D Built.
in high tension protector circuit Absolute Maximum Ratings: (TA = +25°C unles otherwise specified) Supply Voltage V7.
