NTE1680 - Integrated Circuit High Speed / 6 Diode Array

Product Overview

NTE

Part number	NTE1680
Manufacturer	NTE
File Size	19.98 KB
Description	Integrated Circuit High Speed / 6 Diode Array
Datasheet	NTE1680 Datasheet

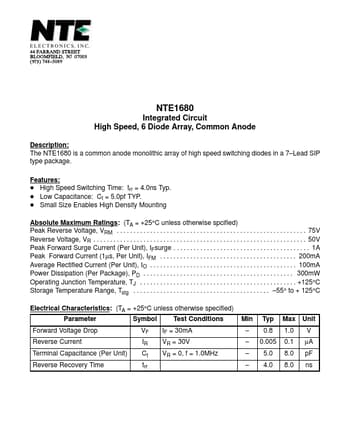

Additional preview pages of the NTE1680 datasheet.

The NTE1680 is a common anode monolithic array of high speed switching diodes in a 7 Lead SIP type package.

D High Speed Switching Time: trr = 4.0ns Typ. D Low Capacitance: Ct = 5.0pf TYP. D Small Size Enables High Density Mounting Absolute Maximum Ratings: (TA = +25°C unless otherwise spcified) Peak Reverse Voltage, VRM.
. . 75V Reverse Voltage, VR.
. . . . 50V Peak Forward Surge Current (Per Unit).
