NTE1529 - Integrated Circuit Dual OP Amp

Product Overview

NTE

Part number	NTE1529
Manufacturer	NTE
File Size	19.44 KB
Description	Integrated Circuit Dual OP Amp
Datasheet	NTE1529 Datasheet

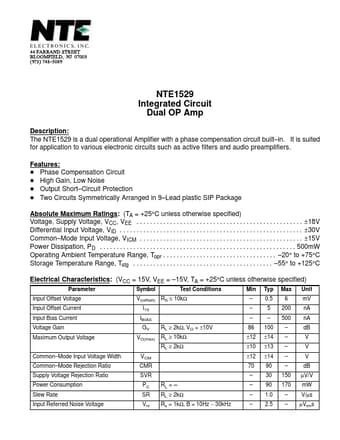

Additional preview pages of the NTE1529 datasheet.

The NTE1529 is a dual operational Amplifier with a phase compensation circuit built in.

D Phase Compensation Circuit D High Gain, Low Noise D Output Short.
Circuit Protection D Two Circuits Symmetrically Arranged in 9.
Lead plastic SIP Package Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Voltage, Supply Voltage, VCC, VEE.
±18V Differential Input Voltage, VID.
±30.
