NTE1523 - Integrated Circuit Dual / Low Noise Preamp

Product Overview

NTE

Part number	NTE1523
Manufacturer	NTE
File Size	18.07 KB
Description	Integrated Circuit Dual / Low Noise Preamp
Datasheet	NTE1523 Datasheet

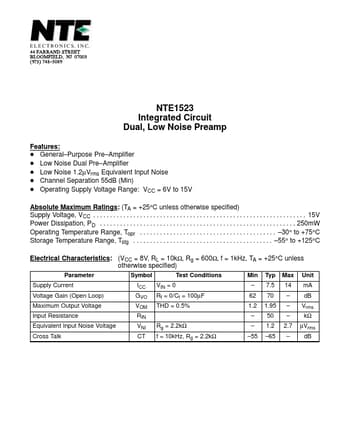

Additional preview pages of the NTE1523 datasheet.

D General.
Purpose Pre.
Amplifier D Low Noise Dual Pre.
Amplifier D Low Noise 1.2µVrms Equivalent Input Noise D Channel Separation 55dB (Min) D Operating Supply Voltage Range: VCC = 6V to 15V Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
. . . . 15V Power Dissipation, PD.
