NTE15029 - Integrated Circuit 2 Channel Tone/DC Volume/Balance Controller

Product Overview

NTE

Part number	NTE15029
Manufacturer	NTE
File Size	24.93 KB
Description	Integrated Circuit 2 Channel Tone/DC Volume/Balance Controller
Datasheet	NTE15029 Datasheet

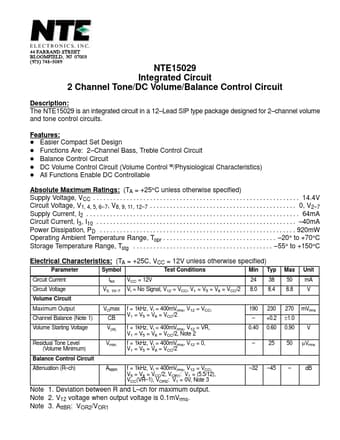

Additional preview pages of the NTE15029 datasheet.

The NTE15029 is an integrated circuit in a 12 Lead SIP type package designed for 2 channel volume and tone control circuits.

D Easier Compact Set Design D Functions Are: 2.
Channel Bass, Treble Control Circuit D Balance Control Circuit D DC Volume Control Circuit (Volume Control w/Physiological Characteristics) D All Functions Enable DC Controllable Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
. . 14.4V Circuit Voltage, V1, 4, 5, 6.
7, V8, 9, 11, 12.
