NTE1502 - Integrated Circuit 5-Step LED Driver

Product Overview

NTE

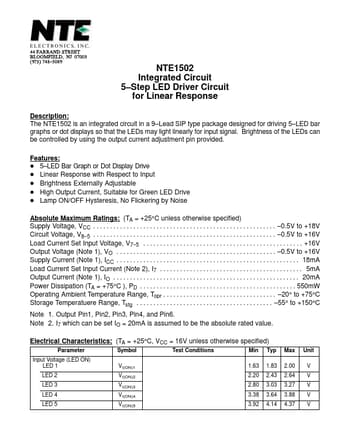

NTE1502 Integrated Circuit 5-Step LED Driver by NTE - Datasheet Preview — Datasheet preview – NTE1502

Datasheet Details

Part number	NTE1502
Manufacturer	NTE
File Size	20.47 KB
Description	Integrated Circuit 5-Step LED Driver
Datasheet	NTE1502 Datasheet
Additional preview pages of the NTE1502 datasheet.

Product details

Description

The NTE1502 is an integrated circuit in a 9 Lead SIP type package designed for driving 5 LED bar graphs or dot displays so that the LEDs may light linearly for input signal.

Features

D 5.
LED Bar Graph or Dot Display Drive D Linear Response with Respect to Input D Brightness Externally Adjustable D High Output Current, Suitable for Green LED Drive D Lamp ON/OFF Hysteresis, No Flickering by Noise Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
0.5V to +18V Circuit Voltage, V8.
5.
