NTE7070 - Integrated Circuit Dual Audio Power Amplifier / 6W/Ch

Product Overview

NTE Electronics

Part number	NTE7070
Manufacturer	NTE Electronics
File Size	20.03 KB
Description	Integrated Circuit Dual Audio Power Amplifier / 6W/Ch
Datasheet	NTE7070 Datasheet

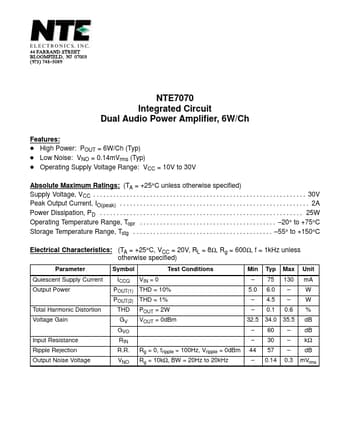

Additional preview pages of the NTE7070 datasheet.

D High Power: POUT = 6W/Ch (Typ) D Low Noise: VNO = 0.14mVrms (Typ) D Operating Supply Voltage Range: VCC = 10V to 30V Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
. . . . 30V Peak Output Current, IO(peak).
. . 2A Power Dissipation, PD.
