NTE7000 - Integrated Circuit 5W Audio Amplifier with Muting

Product Overview

NTE Electronics

Datasheet Details

Part number	NTE7000
Manufacturer	NTE Electronics
File Size	32.81 KB
Description	Integrated Circuit 5W Audio Amplifier with Muting
Datasheet	NTE7000 Datasheet

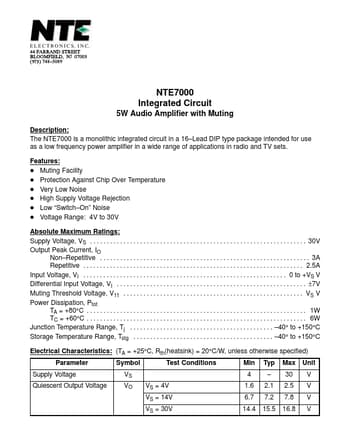

Additional preview pages of the NTE7000 datasheet.

Product details

Description

The NTE7000 is a monolithic integrated circuit in a 16 Lead DIP type package intended for use as a low frequency power amplifier in a wide range of applications in radio and TV sets.

Features

D Muting Facility D Protection Against Chip Over Temperature D Very Low Noise D High Supply Voltage Rejection D Low “Switch.
On” Noise D Voltage Range: 4V to 30V Absolute Maximum Ratings: Supply Voltage, VS.
30V Output Peak Current, IO Non.
Repetitive.
. . . 3A.
