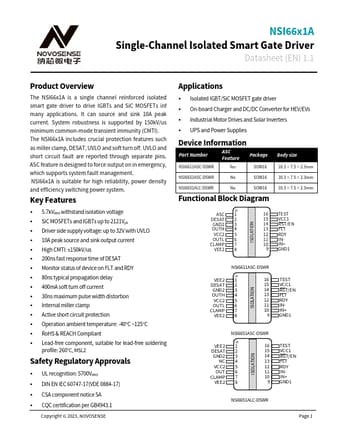

NSi6611A - Single-Channel Isolated Smart Gate Driver

NOVOSENSE

Datasheet Details

Part number	NSi6611A
Manufacturer	NOVOSENSE
File Size	1.48 MB
Description	Single-Channel Isolated Smart Gate Driver
Datasheet	NSi6611A-NOVOSENSE.pdf

14 7.1. INSULATION AND SAFETY RELATED SPECIFICATIONS

such as miller clamp, DESAT, UVLO and soft turn off. UVLO and short circuit fault are reported through separate pins. ASC feature is designed to force output on in emergency, which supports system fault management. NSI66x1A is suitable for high reliability, power density and efficiency switching power system. Key Features.
5.7kVRMS withstand isolation voltage.
SiC MOSFETs and IGBTs up to 2121Vpk.
Driver side supply voltage: up to 32V with UVLO.
10A peak source and sink output.
