NSPAS3 - Automotive Absolute Pressure Sensor

NOVOSENSE

📥 Download Datasheet

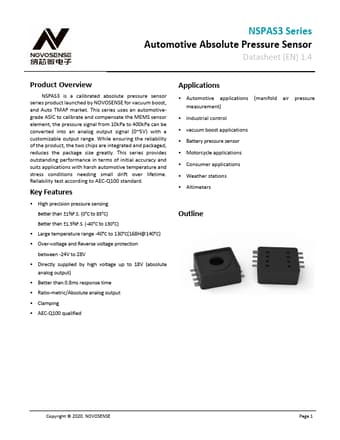

NSPAS3 Datasheet Preview — Preview of NSPAS3 PDF

Datasheet Details

Part number	NSPAS3
Manufacturer	NOVOSENSE
File Size	740.38 KB
Description	Automotive Absolute Pressure Sensor
Datasheet	NSPAS3-NOVOSENSE.pdf

NSPAS3 Product details

Description

6 5.1. OVERVIEW 6 5.2. TRANSFER FUNCTION 6 5.3. ACCURACY 7 6. TYPICAL APPLICATION 9 6.1. APPLICATION CIRCUIT 9 6.2. RECOMMENDED FOOTPRINT 10 7. PACKAGE INFORMATION 10 8. ORDER INFORMATION 11 9. IDENTIFICATION CODE 12 10. PACKAGE INFORMATION 12 11. REVISION 12 Copyright © 2020, NOVOSENSE Page 2 NSPAS3 Series 1. Pin Definition Datasheet (EN) 1.4 Pin NO.1 2 3 4 5 6 7 8 Pin name NC VDDHV NC NC NC GND VOUT GND Fig 1.1 Pin Definition (Top view) Table 1.1 Pin Description Description No

Features

High precision pressure sensing Better than ±1%F. S. (0°C to 85°C) Better than ±1.5%F. S. (-40°C to 130°C).
Large temperature range -40°C to 130°C(168H@140°C).
Over-voltage and Reverse voltage protection between -24V to 28V.
Directly supplied by high voltage up to 18V (absolute analog output).
Better than 0.8ms response time.
Ratio-metric/Absolute analog output.
Clamping.
AEC-Q100 qualified.
