NSI6651A-Q1 - Single-Channel Isolated Smart Gate Driver

Product Overview

NOVOSENSE

Part number	NSI6651A-Q1
Manufacturer	NOVOSENSE
File Size	1.53 MB
Description	Single-Channel Isolated Smart Gate Driver
Datasheet	NSI6651A-Q1 Datasheet
Note	This datasheet PDF includes multiple part numbers: NSI6651A-Q1, NSI6611A-Q1. Please refer to the document for exact specifications by model.

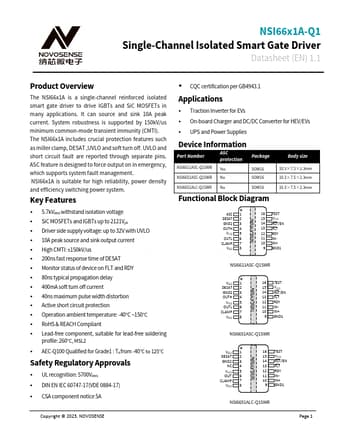

Additional preview pages of the NSI6651A-Q1 datasheet.

14 7.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 14 7.2. INSULATION CHARACTERISTICS FOR SOW16

such as miller clamp, DESAT ,UVLO and soft turn off. UVLO and short circuit fault are reported through separate pins. ASC feature is designed to force output on in emergency, which supports system fault management. NSI66x1A is suitable for high reliability, power density and efficiency switching power system. Key Features.
5.7kVRMSwithstand isolation voltage.
SiC MOSFETs and IGBTs up to 2121Vpk.
Driver side supply voltage: up to 32V with UVLO.
10A peak source and sink output.
