P2806ATF N-Channel Transistor

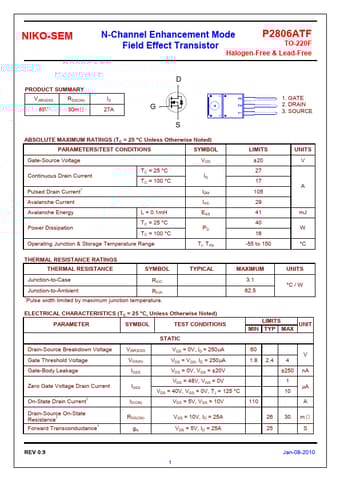

NIKO-SEM N-Channel Enhancement Mode P2806ATF Field Effect Transistor TO-220F Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 60V 30mΩ ID 27A D G 1. GATE 2. DRAIN 3. SOURCE 1 23 S ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy L = 0.1mH Power Dissipation TC = 25 °C TC = 100 °C Operating Junc.

P2806ATF-NIKO-SEM.pdf
