NSSL157AT-H3 - WARM WHITE LED

NICHIA CORPORATION

The NSSL157AT-H3 by NICHIA CORPORATION is a WARM WHITE LED. Below is the official datasheet preview.

📥 Download Datasheet

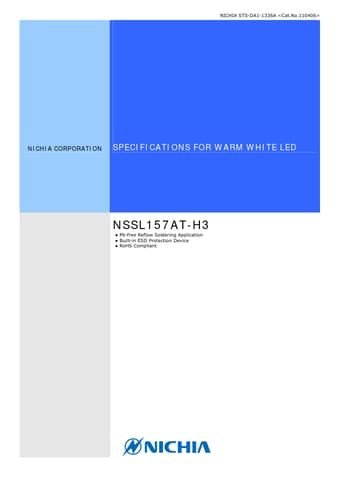

NSSL157AT-H3 WARM WHITE LED by NICHIA CORPORATION - Datasheet Preview — Official preview page of the **NSSL157AT-H3** WARM WHITE LED datasheet (NICHIA CORPORATION).

Datasheet Details

Part number	NSSL157AT-H3
Manufacturer	NICHIA CORPORATION
File Size	294.16 KB
Description	WARM WHITE LED
Datasheet	NSSL157AT-H3-NICHIACORPORATION.pdf
Additional preview pages of the NSSL157AT-H3 datasheet.

NSSL157AT-H3 Product details

Description

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.0075g(TYP) 。 Dimensions do not include mold flash or metal burr. Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 260°C Max 10sec Max Recommended
