NSSL088AT - WHITE LED

NICHIA CORPORATION

The NSSL088AT by NICHIA CORPORATION is a WHITE LED. Below is the official datasheet preview.

📥 Download Datasheet

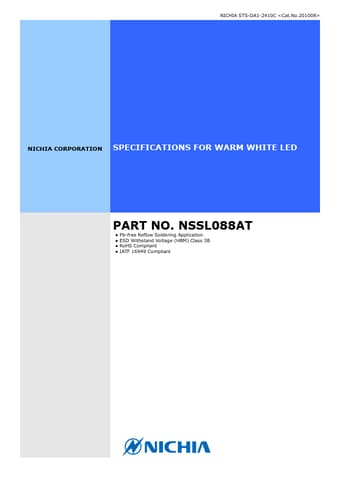

NSSL088AT WHITE LED by NICHIA CORPORATION - Datasheet Preview — Official preview page of the **NSSL088AT** WHITE LED datasheet (NICHIA CORPORATION).

Datasheet Details

Part number	NSSL088AT
Manufacturer	NICHIA CORPORATION
File Size	357.85 KB
Description	WHITE LED
Datasheet	NSSL088AT-NICHIACORPORATION.pdf
Additional preview pages of the NSSL088AT datasheet.

NSSL088AT Product details

Description

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer (） Silicone Resin(with phosphor) + Ag-plated Copper Alloy 0.010g(TYP) 。 Dimensions do not include mold flash or metal burr. Recommended Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 260°CMax 10sec Max Recommended Hand Soldering
