NHSW064T - WHITE LED

NICHIA CORPORATION

The NHSW064T by NICHIA CORPORATION is a WHITE LED. Below is the official datasheet preview.

📥 Download Datasheet

NHSW064T WHITE LED by NICHIA CORPORATION - Datasheet Preview — Official preview page of the **NHSW064T** WHITE LED datasheet (NICHIA CORPORATION).

Datasheet Details

Part number	NHSW064T
Manufacturer	NICHIA CORPORATION
File Size	425.84 KB
Description	WHITE LED
Datasheet	NHSW064T-NICHIACORPORATION.pdf

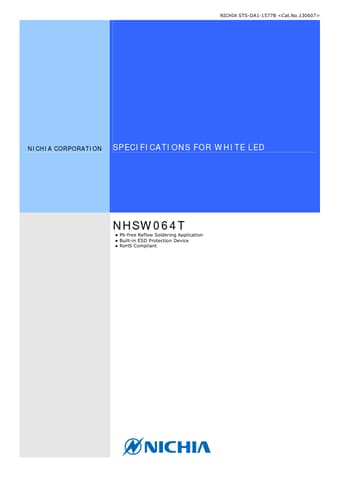

Additional preview pages of the NHSW064T datasheet.

NHSW064T Product details

Description

Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.036g(TYP) Cathode KA Protection Device 2.2 4 NICHIA STS-DA1-1577B SOLDERING Recommended Reflow Soldering Condition(Lead-free Solder) Recommended Hand Soldering Condition Temperature 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 120sec Max 260°CMax 10sec Max Soldering Time 350°C Max 3sec Max Recommended Soldering Pad Pattern 9.5
