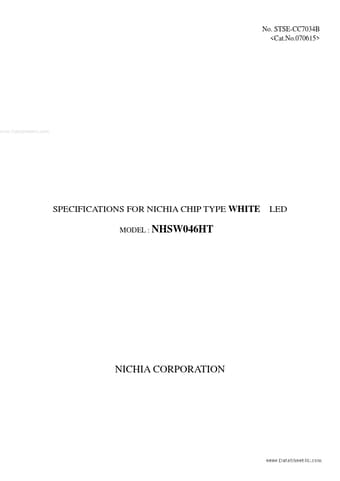

No. STSE-CC7034B
www.DataSheet4U.com
SPECIFICATIONS FOR NICHIA CHIP TYPE WHITE LED
MODEL : NHSW046HT
NICHIA CORPORATION
-0-
Nichia
STSE-CC7034B
1.SPECIFICATIONS
(1) Absolute Maximum Ratings Item Forward Current Pulse Forward Current Allowable Reverse Current Power Dissipation Operating Temperature Storage Temperature www.DataSheet4U.com Soldering Temperature Symbol IF IFP IR PD Topr Tstg Tsld Absolute Maximum Rating 10 30 85 30 -40 ~ +100 -40 ~ +100 Reflow Soldering : 260°C Dip Soldering : 260°C Hand Soldering : 350°C
and Duty < = 1/10
(Ta=25°C) Unit mA mA mA mW °C °C for 10sec. for 10sec. for 3sec.
IFP Conditions
:
Pulse Width < = 10msec.
