UPD8080AF-2, UPD8080AF - 8-BIT N-CHANNEL MICROPROCESSOR

Name: UPD8080AF-2
SKU: UPD8080AF-2-1098264

NEC

The UPD8080AF-2 by NEC is a 8-BIT N-CHANNEL MICROPROCESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	UPD8080AF-2, UPD8080AF
Manufacturer	NEC
File Size	876.00 KB
Description	8-BIT N-CHANNEL MICROPROCESSOR
Datasheet	UPD8080AF-NEC.pdf
Note	This datasheet PDF includes multiple part numbers: UPD8080AF-2, UPD8080AF. Please refer to the document for exact specifications by model.

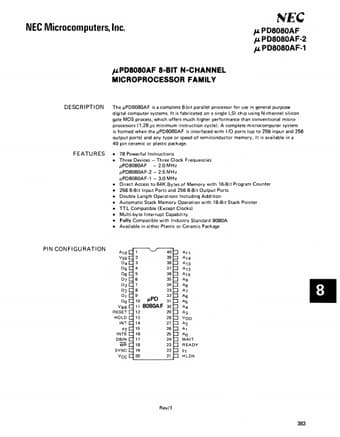

Additional preview pages of the UPD8080AF-2 datasheet.

The IlPD8080AF is a complete 8-bit parallel processor for use ill general purpose digital computer systems_ It is fabricated on a single LSI chip using N-channel silicon gate MOS process, which offers much higher performance than conventional microprocessors (1.28Ils minimum instruction cycle). A complete microcomputer system is formed when the IlPD8080AF is interfaced with I/O ports (up to 256 input and 256 output ports) and any type or speed of semiconductor memory. It is available in a 40 pi.
