UPD8080AF - 8-BIT N-CHANNEL MICROPROCESSOR

Name: UPD8080AF
SKU: UPD8080AF-1098263

NEC

The UPD8080AF by NEC is a 8-BIT N-CHANNEL MICROPROCESSOR. Below is the official datasheet preview.

Datasheet Details

Part number	UPD8080AF
Manufacturer	NEC
File Size	876.00 KB
Description	8-BIT N-CHANNEL MICROPROCESSOR
Datasheet	UPD8080AF-NEC.pdf

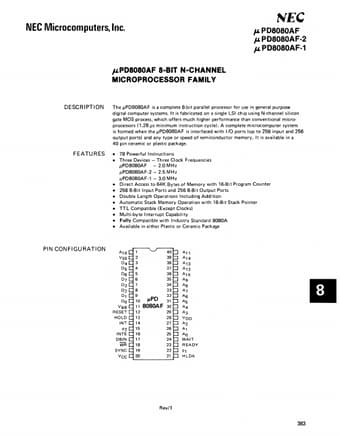

Additional preview pages of the UPD8080AF datasheet.

The IlPD8080AF is a complete 8-bit parallel processor for use ill general purpose digital computer systems_ It is fabricated on a single LSI chip using N-channel silicon gate MOS process, which offers much higher performance than conventional microprocessors (1.28Ils minimum instruction cycle). A complete microcomputer system is formed when the IlPD8080AF is interfaced with I/O ports (up to 256 input and 256 output ports) and any type or speed of semiconductor memory. It is available in a 40 pi.
