UPD6379A - 2-CHANNEL 16-BIT D/A CONVERTER

NEC

📥 Download Datasheet

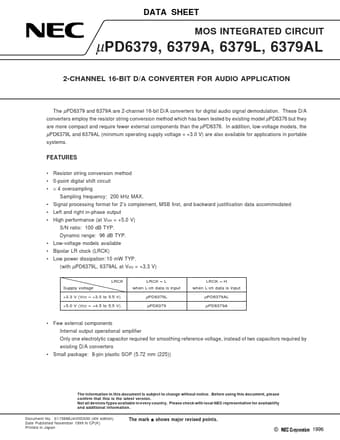

UPD6379A Datasheet Preview — Preview of UPD6379A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPD6379A
Manufacturer	NEC
File Size	119.59 KB
Description	2-CHANNEL 16-BIT D/A CONVERTER
Datasheet	UPD6379A_NEC.pdf

UPD6379A Product details

Features

Resistor string conversion method.
0-point digital shift circuit.
× 4 oversampling Sampling frequency: 200 kHz MAX.
Signal processing format for 2’s complement, MSB first, and backward justification data accommodated.
Left and right in-phase output.
High performance (at VDD = +5.0 V) S/N ratio: 100 dB TYP. Dynamic range: 96 dB TYP.
Low-voltage models available.
Bipolar LR clock (LRCK).
Low power dissipation: 10 m.
