UPD6376 - AUDIO 2-CHANNEL 16-BIT D/A CONVERTER

NEC

The UPD6376 by NEC is a AUDIO 2-CHANNEL 16-BIT D/A CONVERTER. Below is the official datasheet preview.

📥 Download Datasheet

UPD6376 AUDIO 2-CHANNEL 16-BIT D/A CONVERTER by NEC - Datasheet Preview — Official preview page of the UPD6376 AUDIO 2-CHANNEL 16-BIT D/A CONVERTER datasheet (NEC).

Datasheet Details

Part number	UPD6376
Manufacturer	NEC
File Size	140.37 KB
Description	AUDIO 2-CHANNEL 16-BIT D/A CONVERTER
Datasheet	UPD6376_NEC.pdf

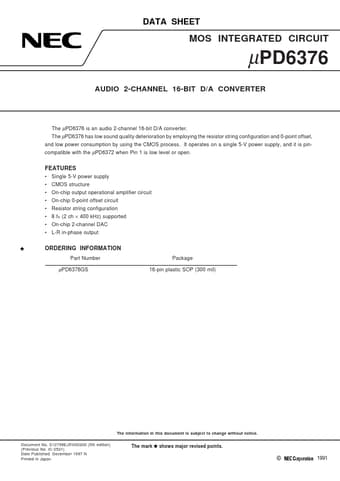

Additional preview pages of the UPD6376 datasheet.

UPD6376 Product details

Features

Single 5-V power supply.
CMOS structure.
On-chip output operational amplifier circuit.
On-chip 0-point offset circuit.
Resistor string configuration.
8 fS (2 ch × 400 kHz) supported.
On-chip 2-channel DAC.
L-R in-phase output.
