UPA1741TP - SWITCHING N-CHANNEL POWER MOSFET

Description

PACKAGE DRAWING (Unit: mm) 8 5 1, 2, 3 ; Source 4 ; Gate 5, 6, 7, 8, 9 ; Drain The µPA1741TP is N-channel MOS FET device that

Features

  • a low on-state resistance and excellent switching characteristics, and designed for high voltage.

📥 Download Datasheet

Datasheet Details

Part number UPA1741TP
Manufacturer NEC
File Size 114.08 KB
Description SWITCHING N-CHANNEL POWER MOSFET
Datasheet download datasheet UPA1741TP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UPA1708G N-Channel 40V MOSFET VBsemi
UPA1572 N-CHANNEL POWER MOS FET ARRAY SWITCHING TYPE Renesas
UPA1855 N-CHANNEL MOS FIELD EFFECT TRANSISTOR Renesas
UPA1A102MPD ALUMINUM ELECTROLYTIC CAPACITORS Nichicon
UPA1A103MPD ALUMINUM ELECTROLYTIC CAPACITORS Nichicon

Other Datasheets by NEC

Part Number Description
UPA1740TP SWITCHING N-CHANNEL POWER MOSFET
UPA1742TP SWITCHING N-CHANNEL POWER MOSFET
UPA1743TP SWITCHING N-CHANNEL POWER MOSFET
UPA1744TP SWITCHING N-CHANNEL POWER MOSFET
UPA1700A SWITCHING N-CHANNEL POWER MOSFET

Full PDF Text Transcription

Click to expand full text

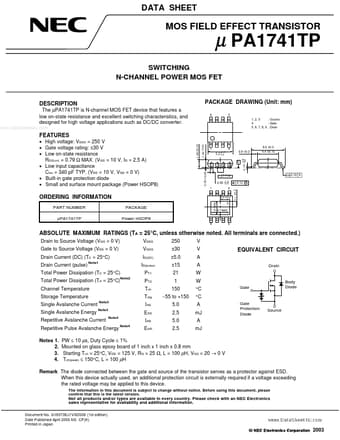

DATA SHEET MOS FIELD EFFECT TRANSISTOR µ PA1741TP SWITCHING N-CHANNEL POWER MOS FET DESCRIPTION PACKAGE DRAWING (Unit: mm) 8 5 1, 2, 3 ; Source 4 ; Gate 5, 6, 7, 8, 9 ; Drain The µPA1741TP is N-channel MOS FET device that features a low on-state resistance and excellent switching characteristics, and designed for high voltage applications such as DC/DC converter. www.DataSheet4U.com FEATURES • High voltage: VDSS = 250 V • Gate voltage rating: ±30 V • Low on-state resistance RDS(on) = 0.79 Ω MAX. (VGS = 10 V, ID = 2.5 A) • Low input capacitance Ciss = 340 pF TYP. (VDS = 10 V, VGS = 0 V) • Built-in gate protection diode • Small and surface mount package (Power HSOP8) 1.49 ±0.21 1.44 TYP. 1 5.2 +0.17 –0.2 4 0.8 ±0.2 S +0.10 –0.05 6.0 ±0.3 4.4 ±0.15 0.05 ±0.05 0.15 1.27 TYP. 0.
