UPA1708 - N-Channel Power MOSFET

NEC

📥 Download Datasheet

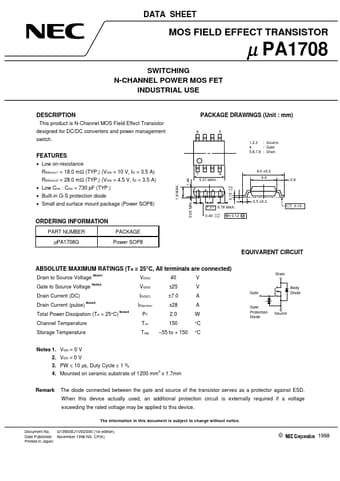

UPA1708 Datasheet Preview — Preview of UPA1708 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPA1708
Manufacturer	NEC
File Size	59.24 KB
Description	N-Channel Power MOSFET
Datasheet	UPA1708_NEC.pdf

UPA1708 Product details

Description

This product is N-Channel MOS Field Effect Transistor designed for DC/DC converters and power management switch.

Features

Low on-resistance RDS(on)1 = 18.0 mΩ (TYP. ) (VGS = 10 V, ID = 3.5 A) 1.44 1 5.37 MAX. +0.10.
0.05 4 6.0 ±0.3 4.4 0.8 RDS(on)2 = 28.0 mΩ (TYP. ) (VGS = 4.5 V, ID = 3.5 A).
Low Ciss : Ciss = 730 pF (TYP. ).
Built-in G-S protection diode.
Small and surface mount package (Power SOP8) 1.8 MAX. 0.15 0.05 MIN. 0.5 ±0.2 0.10 1.27 0.78 MAX. 0.40 +0.10.
0.05 0.12 M.
