UPA1706 - N-Channel Power MOSFET

NEC

📥 Download Datasheet

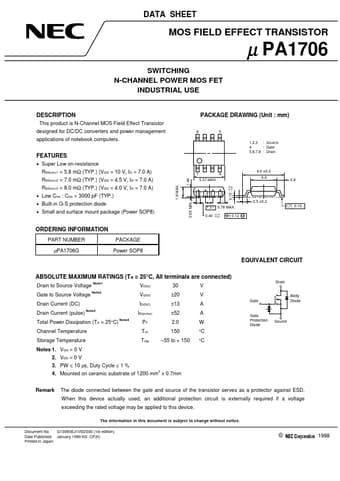

UPA1706 Datasheet Preview — Preview of UPA1706 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPA1706
Manufacturer	NEC
File Size	60.62 KB
Description	N-Channel Power MOSFET
Datasheet	UPA1706_NEC.pdf

UPA1706 Product details

Description

This product is N-Channel MOS Field Effect Transistor designed for DC/DC converters and power management applications of notebook computers.

Features

Super Low on-resistance RDS(on)1 = 5.8 mΩ (TYP. ) (VGS = 10 V, ID = 7.0 A) 1.44 1 5.37 MAX. +0.10.
0.05 4 6.0 ±0.3 4.4 0.8 RDS(on)2 = 7.0 mΩ (TYP. ) (VGS = 4.5 V, ID = 7.0 A) RDS(on)3 = 8.0 mΩ (TYP. ) (VGS = 4.0 V, ID = 7.0 A).
Low Ciss : Ciss = 3000 pF (TYP. ).
Built-in G-S protection diode.
Small and surface mount package (Power SOP8) 1.8 MAX. 0.15 0.05 MIN. 0.5 ±0.2 0.10 1.27 0.78 MAX. 0.40 +0.10.
0.05 0.12 M.
