NX5322 - LASER DIODE

Name: NX5322
SKU: NX5322-652004

NEC

📥 Download Datasheet

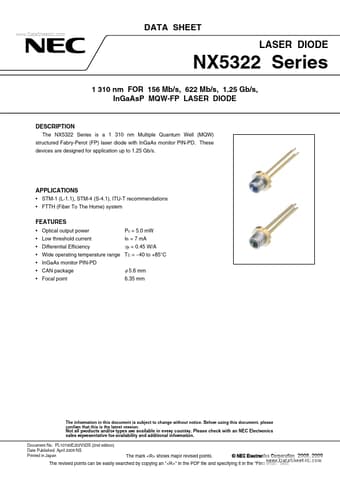

NX5322 Datasheet Preview — Preview of NX5322 PDF

Datasheet Details

Part number	NX5322
Manufacturer	NEC
File Size	122.70 KB
Description	LASER DIODE
Datasheet	NX5322_NEC.pdf

NX5322 Product details

Description

The NX5322 Series is a 1 310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode with InGaAs monitor PIN-PD. STM-1 (L-1.1), STM-4 (S-4.1), ITU-T recommendations FTTH (Fiber To The Home) system

Features

Optical output power.
Low threshold current.
Differential Efficiency.
InGaAs monitor PIN-PD.
CAN package.
Focal point Po = 5.0 mW lth = 7 mA ηd = 0.45 W/A.
Wide operating temperature range TC =.
40 to +85°C φ 5.6 mm 6.35 mm The information in this document is subject to change without notice. Before using this document, please confirm that this is the latest version. Not all products and/or types are available in every.
