NX5323EH - LASER DIODE

Name: NX5323EH
SKU: NX5323EH-831490

California Eastern Labs

📥 Download Datasheet

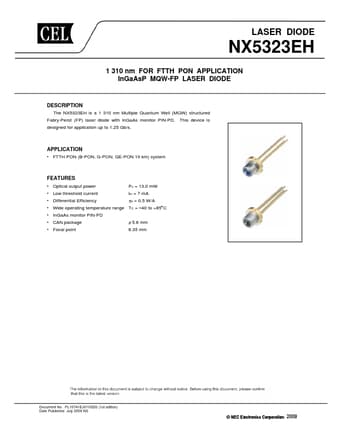

NX5323EH Datasheet Preview — Preview of NX5323EH PDF

Datasheet Details

Part number	NX5323EH
Manufacturer	California Eastern Labs
File Size	173.60 KB
Description	LASER DIODE
Datasheet	NX5323EH-CaliforniaEasternLabs.pdf

NX5323EH Product details

Description

The NX5323EH is a 1 310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode with InGaAs monitor PIN-PD. FTTH PON (B-PON, G-PON, GE-PON 10 km) system

Features

Optical output power.
Low threshold current.
Differential Efficiency.
InGaAs monitor PIN-PD.
CAN package.
Focal point Po = 13.0 mW lth = 7 mA ηd = 0.5 W/A.
Wide operating temperature range TC =.
40 to +85°C φ 5.6 mm 6.35 mm Document No. PL10741EJ01V0DS (1st edition) Date Published July 2009 NS 2009 NX5323EH.
