K3480 2SK3480

K3480 Description

DATA SHEET MOS FIELD EFFECT www.DataSheet4U.com TRANSISTOR 2SK3480 SWITCHING N-CHANNEL POWER MOS FET .
The 2SK3480 is N-channel MOS Field Effect Transistor designed for high current switching applications.

K3480 Features

* Super low on-state resistance: RDS(on)1 = 31 mΩ MAX. (VGS = 10 V, ID = 25 A) RDS(on)2 = 36 mΩ MAX. (VGS = 4.5 V, ID = 25 A)
* Low Ciss: Ciss = 3600 pF TYP.
* Built-in gate protection diode Note TO-220SMD package is produced only in Japan. (TO-220AB) ABSOLUTE MAXIMUM RATIN

📥 Download Datasheet

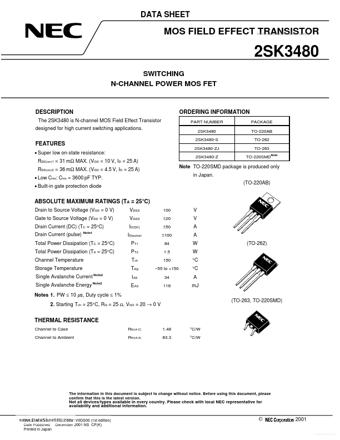

Preview of K3480 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K3480
Manufacturer
NEC
File Size
123.88 KB
Datasheet
K3480_NEC.pdf
Description
2SK3480
