D780232 UPD780232

D780232 Description

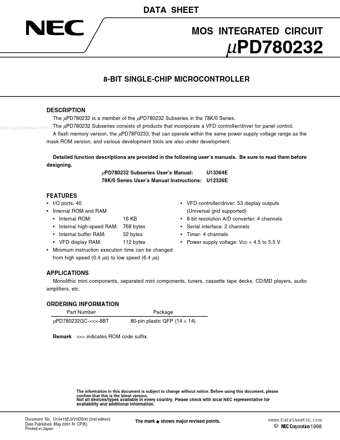

DATA SHEET MOS INTEGRATED CIRCUIT µPD780232 8-BIT SINGLE-CHIP MICROCONTROLLER .
The µPD780232 is a member of the µPD780232 Subseries in the 78K/0 Series.

D780232 Features

* I/O ports: 40
* Internal ROM and RAM
* Internal ROM:
* Internal high-speed RAM:
* Internal buffer RAM:
* VFD display RAM: 16 KB 768 bytes 32 bytes 112 bytes
* VFD controller/driver: 53 display outputs (Universal grid supported)
* 8-bi

D780232 Applications

* Monolithic mini components, separated mini components, tuners, cassette tape decks, CD/MD players, audio amplifiers, etc. ORDERING INFORMATION Part Number Package 80-pin plastic QFP (14 × 14) µPD780232GC-×××-8BT Remark ××× indicates ROM code suffix. The information in this document is subject to
