D75006 - UPD75006

D75006 Description

DATA SHEET MOS INTEGRATED CIRCUIT µPD75004, 75006, 75008 4-BIT SINGLE-CHIP MICROCOMPUTER .
The µPD75008 is one of the 75X Series 4-bit single-chip microcomputer.

D75006 Features

* Capable of high-speed operation and variable instruction execution time to power save
* 0.95 µs, 1.91 µs, 15.3 µs (Main system clock: operating at 4.19 MHz)
* 122 µs (Subsystem clock: operating at 32.768 kHz)
* 75X architecture comparable to that for an 8-bit microc

D75006 Applications

* such as remote control receiver APPLICATIONS VCRs, CD players, telephones, cameras, blood pressure gauges, etc. Unless otherwise specified, µ PD75008 is treated as the representative model throughout this manual. The information in this document is subject to change without notice. Document No.

📥 Download Datasheet

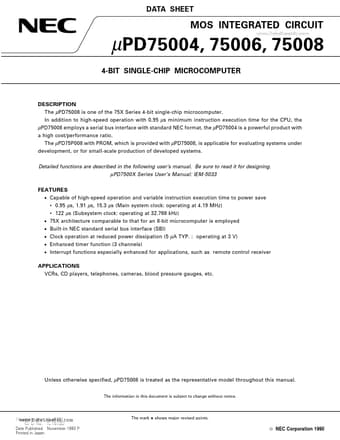

Preview of D75006 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D75006
Manufacturer
NEC
File Size
511.25 KB
Datasheet
D75006_NEC.pdf
Description
UPD75006
