C5617 - NPN SILICON RF TRANSISTOR

NEC

The C5617 by NEC is a NPN SILICON RF TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

C5617 NPN SILICON RF TRANSISTOR by NEC - Datasheet Preview — Official preview page of the C5617 NPN SILICON RF TRANSISTOR datasheet (NEC).

Datasheet Details

Part number	C5617
Manufacturer	NEC
File Size	99.38 KB
Description	NPN SILICON RF TRANSISTOR
Datasheet	C5617-NEC.pdf

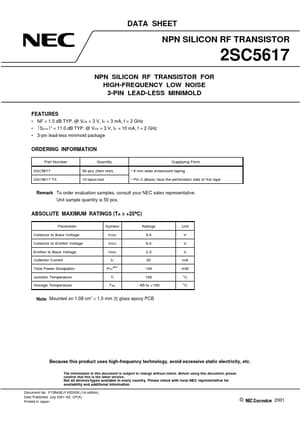

Additional preview pages of the C5617 datasheet.

C5617 Product details

Features

NF = 1.5 dB TYP. @ VCE = 3 V, IC = 3 mA, f = 2 GHz.
S21e2 = 11.0 dB TYP. @ VCE = 3 V, IC = 10 mA, f = 2 GHz.
3-pin lead-less minimold package.
