C5615 - NPN SILICON RF TRANSISTOR

NEC

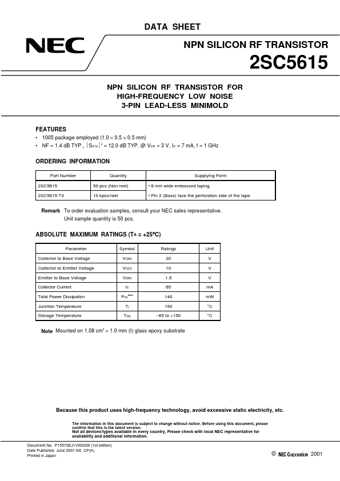

The C5615 by NEC is a NPN SILICON RF TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

C5615 NPN SILICON RF TRANSISTOR by NEC - Datasheet Preview — Official preview page of the C5615 NPN SILICON RF TRANSISTOR datasheet (NEC).

Datasheet Details

Part number	C5615
Manufacturer	NEC
File Size	120.04 KB
Description	NPN SILICON RF TRANSISTOR
Datasheet	C5615-NEC.pdf
Additional preview pages of the C5615 datasheet.

C5615 Product details

Features

1005 package employed (1.0 × 0.5 × 0.5 mm).
NF = 1.4 dB TYP. , S21e2 = 12.0 dB TYP. @ VCE = 3 V, IC = 7 mA, f = 1 GHz.
