2SK2826-ZJ - SWITCHING N-CHANNEL POWER MOSFET

NEC

📥 Download Datasheet

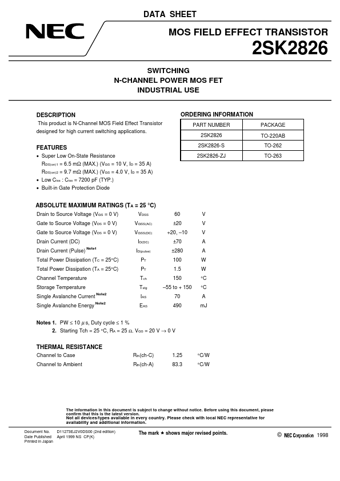

2SK2826-ZJ Datasheet Preview — Preview of 2SK2826-ZJ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2826-ZJ
Manufacturer	NEC
File Size	74.62 KB
Description	SWITCHING N-CHANNEL POWER MOSFET
Datasheet	2SK2826-ZJ_NEC.pdf

2SK2826-ZJ Product details

Description

This product is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

Super Low On-State Resistance RDS(on)1 = 6.5 mΩ (MAX. ) (VGS = 10 V, ID = 35 A) RDS(on)2 = 9.7 mΩ (MAX. ) (VGS = 4.0 V, ID = 35 A).
Low Ciss : Ciss = 7200 pF (TYP. ).
Built-in Gate Protection Diode.
