2SK2483 - N-Channel MOSFET

Description

The 2SK2483 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications.

Features

  • Low On-Resistance RDS (on) = 2.8 Ω (VGS = 10 V, ID = 2.0 A) 10.0±0.3 3.2±0.2 4.5±0.2 2.7±0.2 15.0±0.3 3±0.1 4±0.2.

📥 Download Datasheet

Datasheet Details

Part number 2SK2483
Manufacturer NEC
File Size 86.45 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK2483 Datasheet

📁 Similar Datasheet

  • 2SK2480 - MOS FIELD EFFECT TRANSISTOR (Renesas)
  • 2SK2484 - MOS Field Effect Transistors (Kexin)
  • 2SK2484 - N-Channel 900V Power MOSFET (VBsemi)
  • 2SK2484 - N-CHANNEL POWER MOSFET (Renesas)
  • 2SK2485 - N-Channel MOSFET (INCHANGE)
  • 2SK2489 - VZ Series Power MOSFET (Shindengen Electric Mfg.Co.Ltd)
  • 2SK240 - Silicon N-Channel Transistor (Toshiba)
  • 2SK2400 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2401 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK2401 - N-Channel MOSFET Transistor (Inchange Semiconductor)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

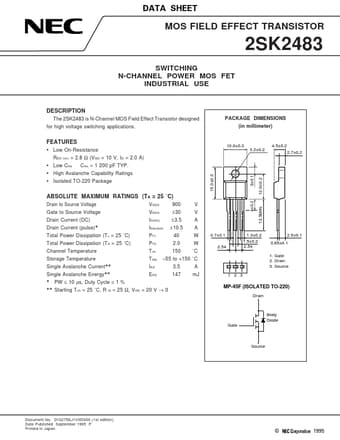

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2483 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE DESCRIPTION The 2SK2483 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications. PACKAGE DIMENSIONS (in millimeter) FEATURES • Low On-Resistance RDS (on) = 2.8 Ω (VGS = 10 V, ID = 2.0 A) 10.0±0.3 3.2±0.2 4.5±0.2 2.7±0.2 15.0±0.3 3±0.1 4±0.2 ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C) Drain to Source Voltage Gate to Source Voltage Drain Current (DC) Drain Current (pulse)* Total Power Dissipation (Tc = 25 ˚C) Total Power Dissipation (TA = 25 ˚C) Channel Temperature Storage Temperature Single Avalanche Current** Single Avalanche Energy** * PW ≤ 10 µs, Duty Cycle ≤ 1 % G VGSS ID(DC) ID(pulse) PT1 PT2 Tch Tstg IAS EAS = 25 Ω, VGS = 20 V → 0 ± 30 ± 3.5 ± 10.
