2SK2358 - N-Channel MOSFET

Description

The 2SK2357/2SK2358 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications.

Features

  • Low On-Resistance 2SK2357: RDS(on) = 0.9 Ω (VGS = 10 V, ID = 3.0 A) 15.0 ±0.3 2SK2358: RDS(on) = 1.0 Ω (VGS = 10 V, ID = 3.0 A).
  • Low Ciss Ciss = 1050 pF TYP.
  • High Avalanche Capability Ratings.
  • Isolate TO-220 Package.

📥 Download Datasheet

Datasheet Details

Part number 2SK2358
Manufacturer NEC
File Size 61.75 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK2358 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2350 Silicon N-Channel MOSFET Toshiba Semiconductor
2SK2350 N-Channel MOSFET Transistor Inchange Semiconductor
2SK2351 N-Channel MOSFET Transistor Inchange Semiconductor
2SK2352 N-Channel MOSFET Transistor Inchange Semiconductor
2SK2352 Silicon N-Channel MOSFET Toshiba

Other Datasheets by NEC

Part Number Description
2SK2353 N-Channel MOSFET
2SK2354 N-Channel MOSFET
2SK2355 N-Channel MOSFET
2SK2355-Z N-Channel MOSFET
2SK2356 N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

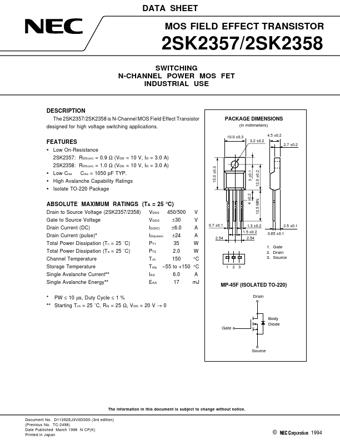

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2357/2SK2358 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE DESCRIPTION The 2SK2357/2SK2358 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications. PACKAGE DIMENSIONS (in millimeters) 10.0 ±0.3 4.5 ±0.2 3.2 ±0.2 2.7 ±0.2 FEATURES • Low On-Resistance 2SK2357: RDS(on) = 0.9 Ω (VGS = 10 V, ID = 3.0 A) 15.0 ±0.3 2SK2358: RDS(on) = 1.0 Ω (VGS = 10 V, ID = 3.0 A) • Low Ciss Ciss = 1050 pF TYP.
